Farrowing pen: INN-O-CRATE
More weaned pigs, high weight at weaning

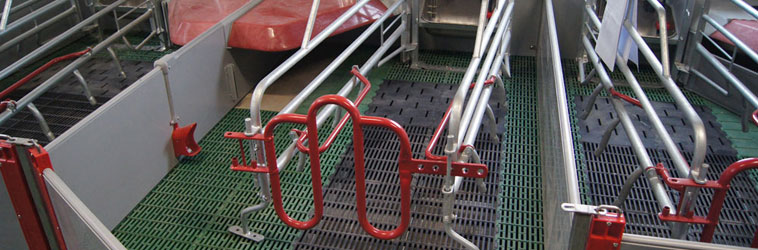

INN-O-CRATE® is our traditional farrowing crate, which can be adjusted according to the size of the sow. The front of the crate can be mounted in 5 different positions and the rear part can by means of the rear gate be adjusted by almost 30 cm!
The rounded design takes care of the sows’ rear part and provides plenty of room during the farrowing. The tiltable wings make it easy for the sow to get up and protect the piglets, when the sow lies down.

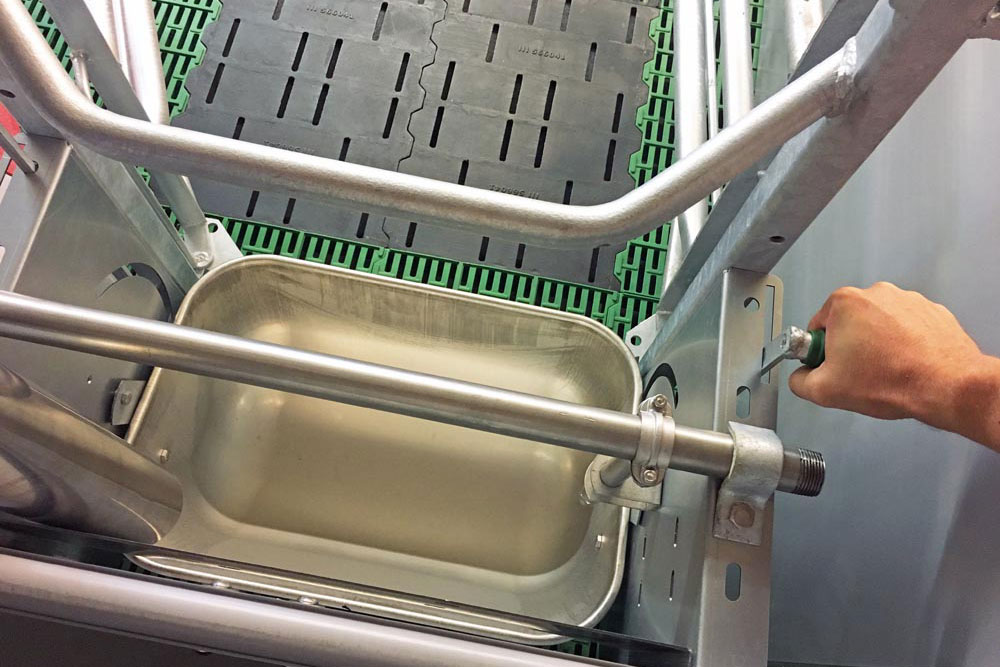

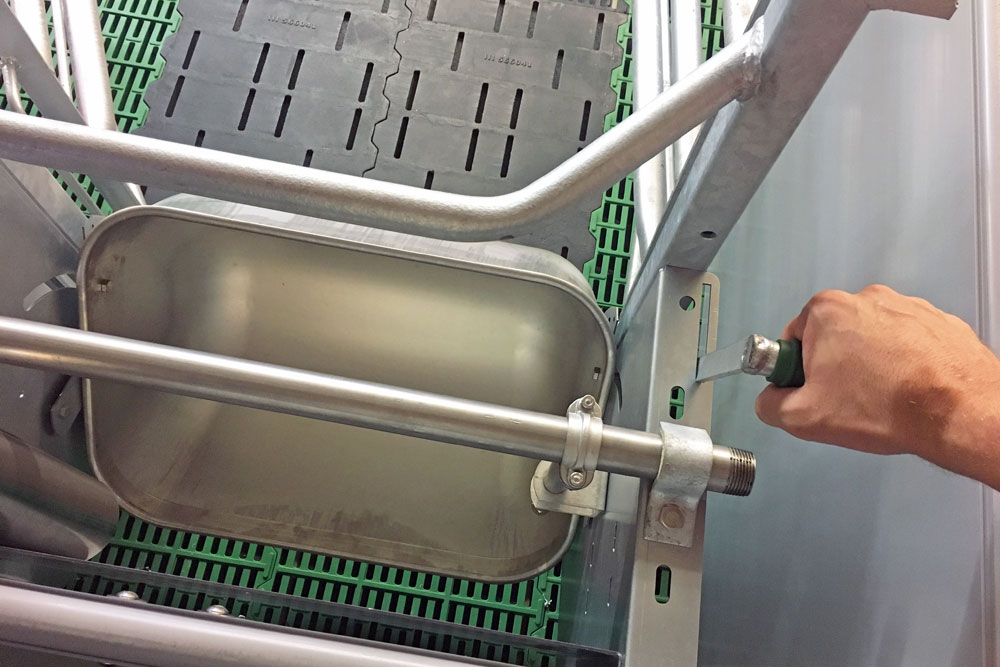

The farrowing box is available with tiltable trough, making it very easy, safe and ergonomic to clear the trough using a handle. The design and mounting of the sow trough makes it possible to have a limited or no casting so that the sow can utilize the space below.
| Pen length | 2500 - 3000 mm |
| Pen width | 1650 / 1750 mm |
| Pen height | 500 mm |
| Profiles | U-profiles 1,5 mm stainless steel |
| Board profiles | 35 x 500 mm |
| Lying length | 2000 - 2100 mm |
| Width farrowing crate, front | 520 - 610 mm |
| Width farrowing crate, rear | 580 - 850 mm |
| Height crate side | 900 mm |
| Crate side | 33,7 / 42,4 x 2,65 pipe |
| Volume trough | 21 liter |

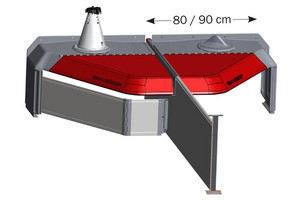

| Piglets nest width | 800 / 900 cm |
| Piglets nest area | 0,7 / 0,8 kvm |
Download brochure
- B-6513 GB INN-O-CRATE FARROWING PEN (PDF; 718 KB)
- INN-O-CORNER piglet nest (PDF; 305 KB)
