Aktiva Wagon
The carcass wagon for pork and heavy pigs. Very easy to use.
The wagon is designed to transport dead animals out of the pigsties easy and without imposing any excessive strain on employees.
- For moving dead sows / finishers
- Manufactured in Denmark

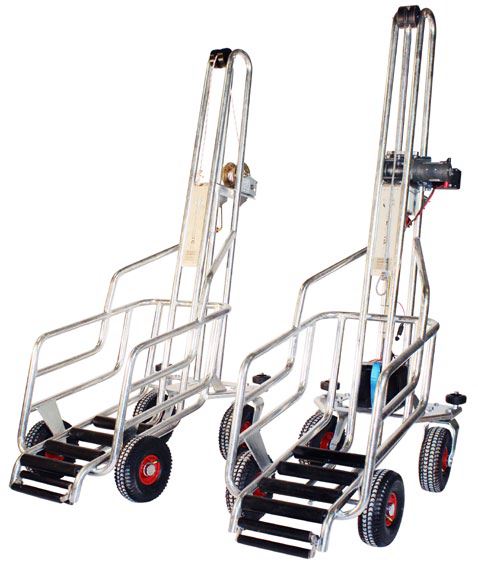

- Two models:
AKTIVA 2002 (H: 175 cm)
AKTIVA 3002 (H: 185/198 cm)
- The pipe frame is hot galvanized
- Plastic is PA6
- Stainless steel coated in PA6 type plastic

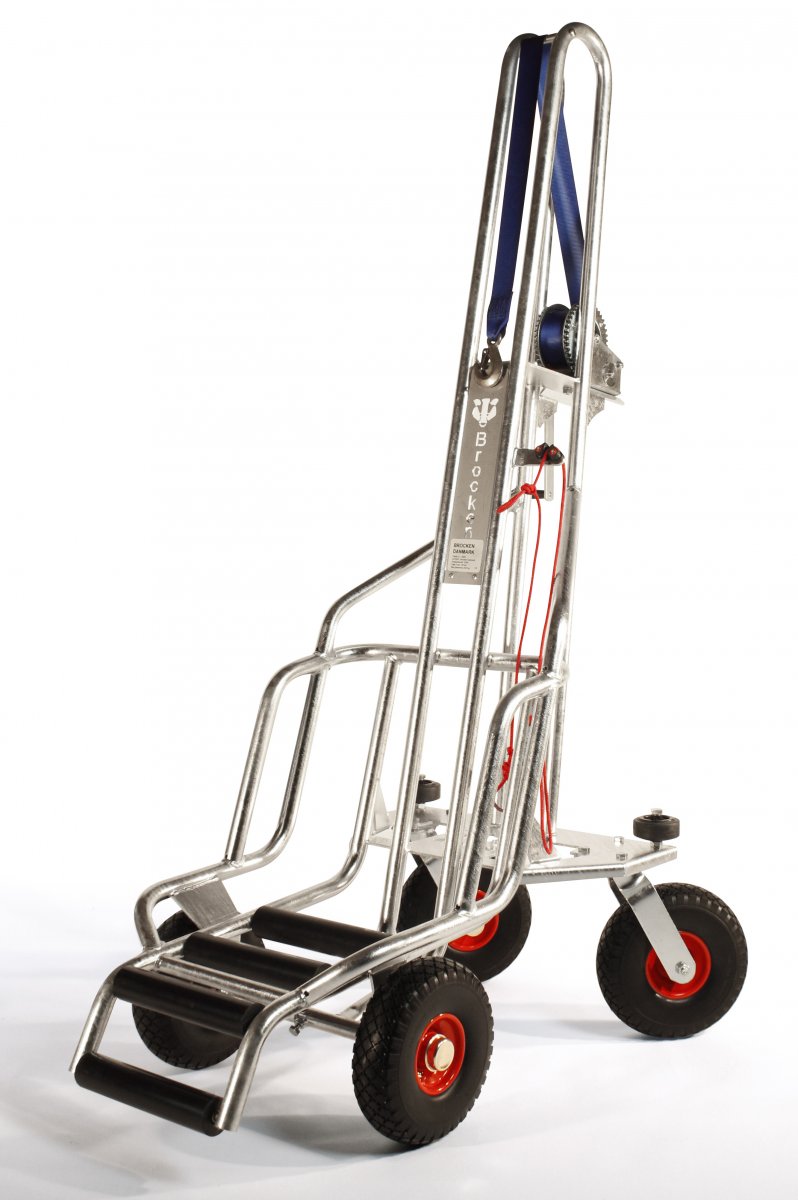

AKTIVA 2002 - for finishers
- Smaller pigs:
Are dragged up on the wagon with the rope afterwards therope are locked in the cam clear.
- Larger pigs:
Are dragged up on the wagon with the rope inside the pigsty.
| Width: | 60 cm |
| Height: | 175 cm |
| Weight: | 45 kg |
| Length at floor level: | 93 cm |
| Length in height: | 111 cm |
| Max. load: | 600 kg |
| Pull: | 800 kg |
| Heavy rubber wheel with 4 layers of canvas | |
| Steel rims with needle bearing |

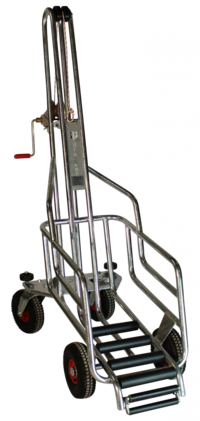

AKTIVA 3002 - for sows

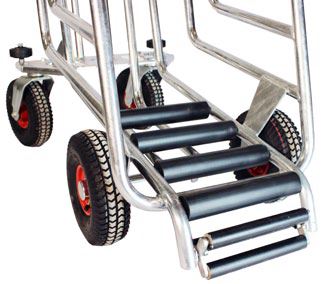

- Triple rollers
- Very hard-wearing
- Two rollers on the floor, while the carcass is pulled over the third
- Brakes available as extra equipment
- New generation with nine improvements
| Width: | 60 cm |
| Height: | 185/198 cm |
| Weight: | 50 kg |
| Length at floor level: | 110 cm |
| Length in height: | 133 cm |
| Max. load: | 600 kg |
| Automatic holding break: | holds loads in anygiven position |
| 6 mm rope with a tensile strength 2300 kg | |
| Ait-filled with 4 ply vulcanised rubber wheel | |
| Covered bearings |
Download brochure
- Aktiva Wagon (PDF; 350 KB)
